LS76925+CS32F103C8T6 BMS protection solution
Time : 2024-04-11

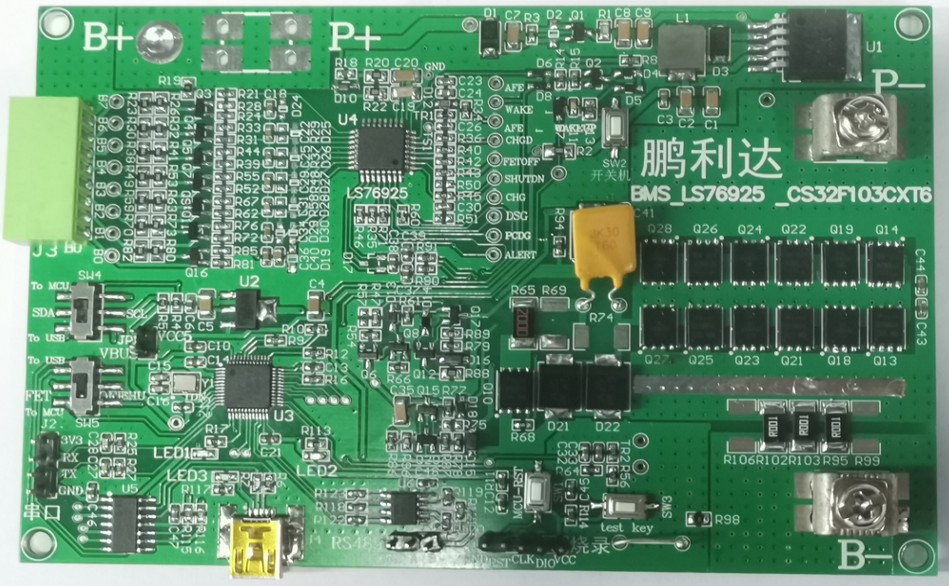

LS76925+CS32F103C8T6 BMS protection solution

This BMS protection solution is based on Lingsiwei AFE LS76925 + Xinhai CS32F103C8T6 MCU control. MCU controls LS76928 to perform related battery pack management functions and protection, such as battery pack voltage, current, temperature measurement; charging, discharging, and pre-discharge FET tube and balance control. It can also communicate stably with external devices through the RS-485 bus interface. It can monitor 3~7 strings of batteries , including ternary lithium, lithium iron phosphate, and sodium ion. It is widely used in drones, outdoor power supplies, power tools and other fields.



This solution is applicable to various BMS protection scenarios:

u   Drones

u   Outdoor Power Supply

u   electrical tools

u   Cordless Vacuum Cleaner

u   Backup power or energy storage system

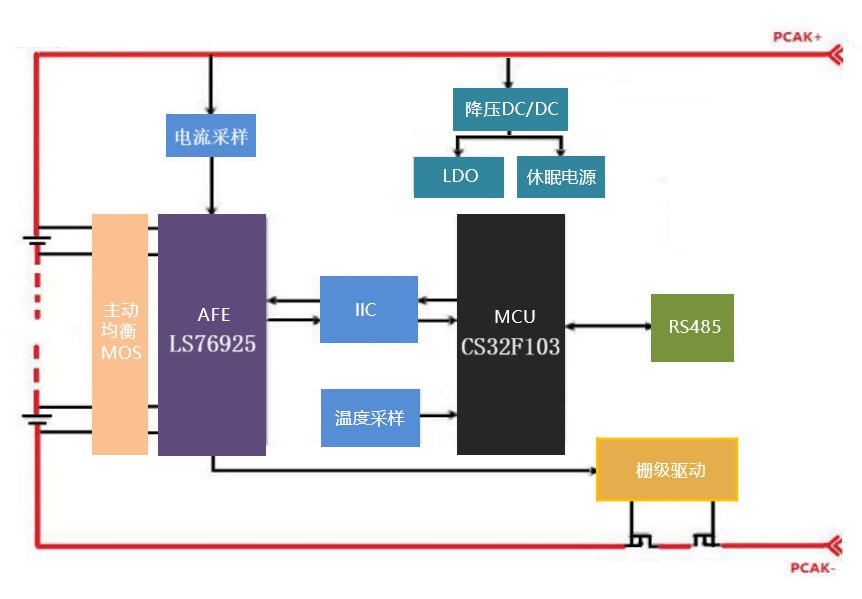

Functional Block Diagram



Product Parameters


Number of battery strings

3~7 strings

Voltage accuracy

±5mV

Current accuracy

±0.5%

Product Size

88mmX132mm

Fuel gauge function

MCU estimation

basic skills

Overcurrent protection

Overcharge protection

Over discharge protection

Discharge short circuit protection

High temperature over-temperature and low temperature under-temperature protection

communication method

RS485

Product advantages


High stability

High-precision detection

Overvoltage protection

Temperature protection

Adjustable overcurrent protection

Products Recommended


Device Name

model

factory

AFE

LS76925

Lingsi Micro

MCU

CS32F103C8T6

Chipsea

DC-DC

Please contact our sales for specific models

LDO

MOS
